About the "TeikyoSat-4" project
About the "TeikyoSat-4" Project

We aim to creat a micro ISS (International Space Station) for microsatellite

"Teikyo Sat-4", which is being developed by the engineering club "Space Systems Study Group" in Department of Aerospace Engineering, Faculty of Science and Engineering and Technology, is a microsatellite with a side of about 50 cm and a weight of about 50 kg. The mission is to reduce the cost of space development, to expand the base of space utilization by amateur radio, to succeed in microbial observation, and to contribute to the field of Life Science (re-challenge TeikyoSat-3). The production of artificial satellites is divided into six groups: "mission (slime mold)", "structure", "electronic / power supply", "heat (control)", "communication / ground station", and "attitude control". Students aim to success the project from their respective roles.

Overview of "TeikyoSat-4"

Satellite name "TeikyoSat-4"
Nickname Blue-and-white fly
Overall size W520mm x D520mm x H520mm
mass About 52 kg
Mission 1.Demonstration in orbit of a bus system for experiment of satellites in the multipurpose space environment
2. Demonstration in orbit of high-speed communication band of amateur radio
3. Demonstration in orbit of missions in the field of Life Science
Operational trajectory Altitude 560km and sun-synchronous quasi-return orbit
Mission period Missions 1 and 2 : over 3 years (to re-entry into the atmosphere)
Mission 3 : about 3 months
Orbital operation period About 10 years
Generated power Main OBC side: 14W, New OBC side: 7W
Attitude control Active control using magnetic torquer
communication Amateur radio
Transmitter (down link) 437 MHz band, 5.8 GHz band
Receiver (up link) 145 MHz band, 1.2 GHz band

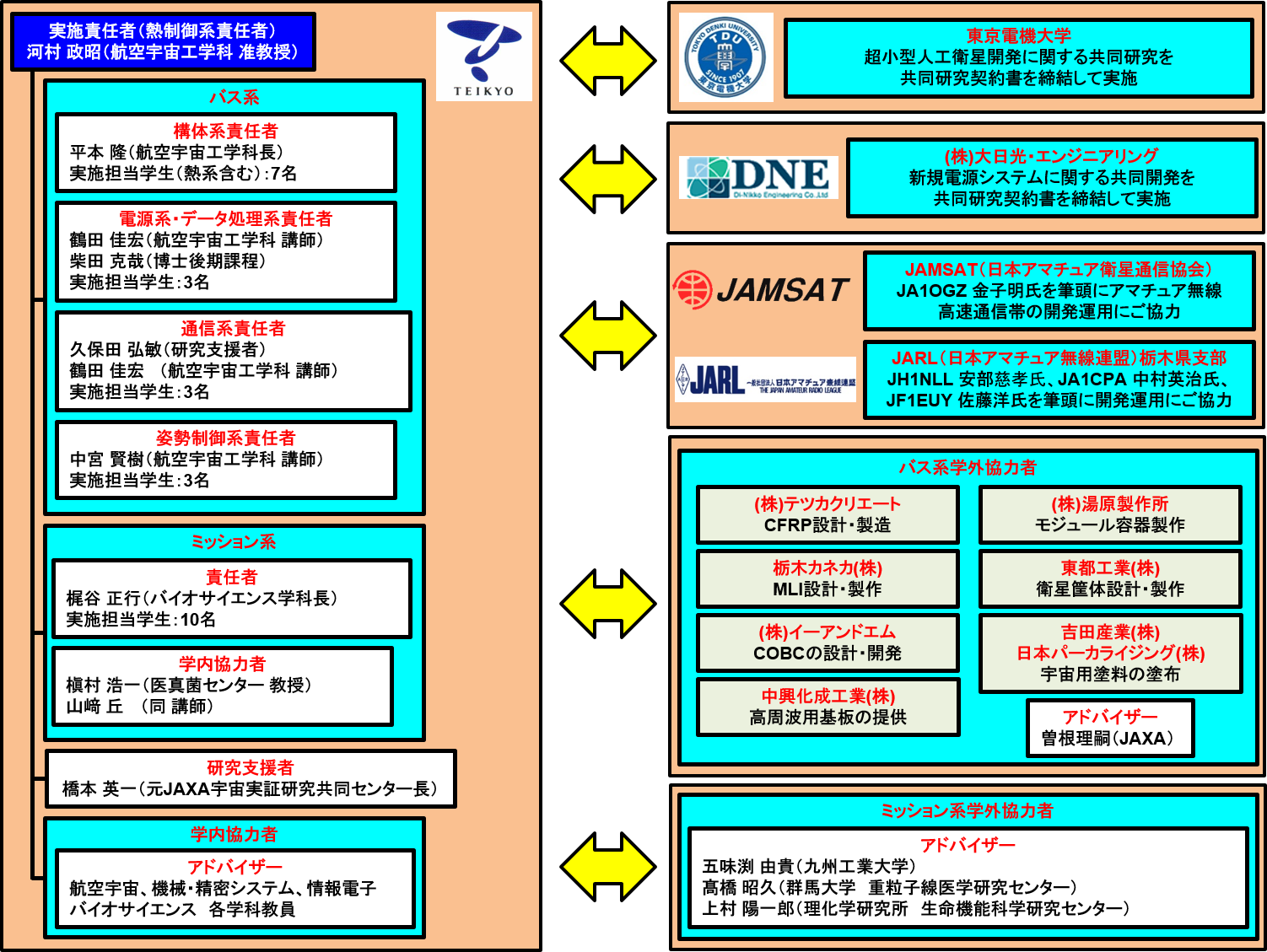

Development system of "TeikyoSat-4"

Development implementation system of "TeikyoSat-3"

(As of 2021.11)
